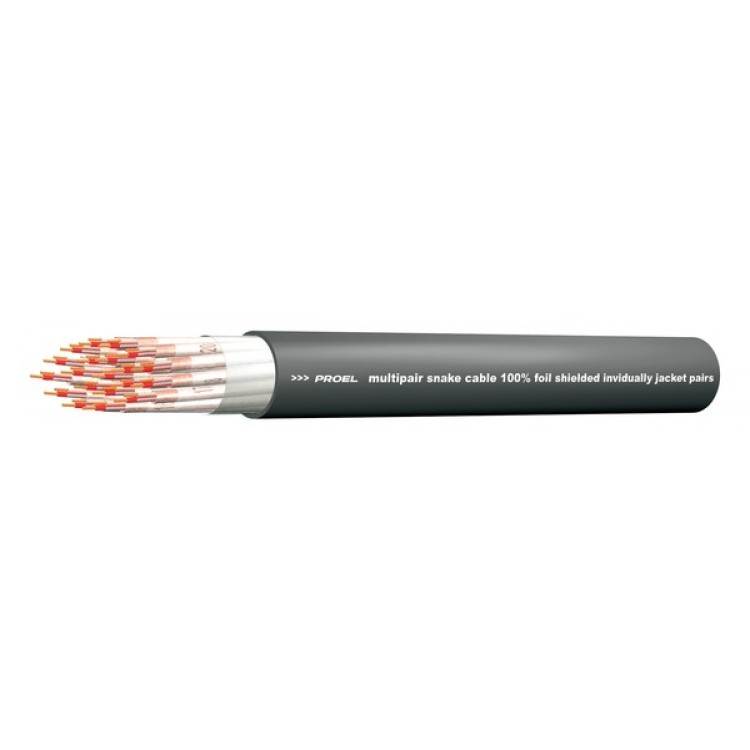

PROEL MULTICORE KABEL CMN16

Proizvajalec: Proel
Koda: 0631206
Zaloga: Na zalogi
Zaloga v skladiščih:
  • Trgovina MB
  • Trgovina Lj, Vošnjakova 16
  • Trgovina Muzikalije LJ
  • Trgovina MS
  • Skladišče MB
  • Trgovina SG
Podrobnosti:

PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.PROEL MULTICORE KABEL CMN16 The CMN series of multipair cables consists of 100% shie ...
Preberi več

6,13 €
PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.

PROEL MULTICORE KABEL CMN16

The CMN series of multipair cables consists of 100% shielded pairs individually insulated with number-printed transparent polypropylene (two XLPE jacket insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects). The PVC overall jacket is made in accordance with CEI 20.20II and IEC 332.1 regulations (flame retardant jacket). Moreover, it offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.


Application fields: Live events monitoring
Stage boxes
Recording studios
Conductors: Bare copper
26 AWG = 18 x 0.10 mm (0.14 mm2)
Insulation: XLPE o 1 mm white/red
Shield: CONDUCTORS
Aluminium foil copper colour 100%
CABLE
Cotton tape 100%
Drain wire: Tinned copper
24 AWG = 7 x 0.18 mm (0.22 mm2)
Jacket: PAIRS
Number-printed transparent PP o 2.80 mm
CABLE
Flexible flame retardant PVC 60 shore
o 13.20 mm
Complying with CEI 20.20II / IEC 332.1 regulations
Conductor resistance: 127 Ohm/Km @ 20°C
Shied resistance: 99 Ohm/Km @ 20°C
Conductor/conductor capacitance: 52 pF/mt @1 KHz
Conductor/shield capacitance: 89 pF/mt @ 1 KHz
Nominal Impedance: 100 ± 3 Ohm
Attenuation: 1 MHz = 2.20 dB/100 mt
3 MHz = 3.90 dB/100 mt
6 MHz = 5.50 dB/100 mt
8 MHz = 6.40 dB/100 mt
10 MHz = 7.10 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Test voltage: 700 V AC
1000 V DC
Minumum bending radius: 10x overall diameter
Colours Available: Dull black
Notes: Custom packaging
PROEL MULTICORE KABEL CMN16 iz kategorije multicore kabli sodi med odlične Kabli in konektorji.

PROEL MULTICORE KABEL CMN16

The CMN series of multipair cables consists of 100% shielded pairs individually insulated with number-printed transparent polypropylene (two XLPE jacket insulated conductors twisted together with drain wire in order to grant a total protection against crosstalk effects). The PVC overall jacket is made in accordance with CEI 20.20II and IEC 332.1 regulations (flame retardant jacket). Moreover, it offers a good flexibility even at very high temperatures. The cable extreme flexibility allows an easy winding.


Application fields: Live events monitoring
Stage boxes
Recording studios
Conductors: Bare copper
26 AWG = 18 x 0.10 mm (0.14 mm2)
Insulation: XLPE o 1 mm white/red
Shield: CONDUCTORS
Aluminium foil copper colour 100%
CABLE
Cotton tape 100%
Drain wire: Tinned copper
24 AWG = 7 x 0.18 mm (0.22 mm2)
Jacket: PAIRS
Number-printed transparent PP o 2.80 mm
CABLE
Flexible flame retardant PVC 60 shore
o 13.20 mm
Complying with CEI 20.20II / IEC 332.1 regulations
Conductor resistance: 127 Ohm/Km @ 20°C
Shied resistance: 99 Ohm/Km @ 20°C
Conductor/conductor capacitance: 52 pF/mt @1 KHz
Conductor/shield capacitance: 89 pF/mt @ 1 KHz
Nominal Impedance: 100 ± 3 Ohm
Attenuation: 1 MHz = 2.20 dB/100 mt
3 MHz = 3.90 dB/100 mt
6 MHz = 5.50 dB/100 mt
8 MHz = 6.40 dB/100 mt
10 MHz = 7.10 dB/100 mt
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Test voltage: 700 V AC
1000 V DC
Minumum bending radius: 10x overall diameter
Colours Available: Dull black
Notes: Custom packaging
